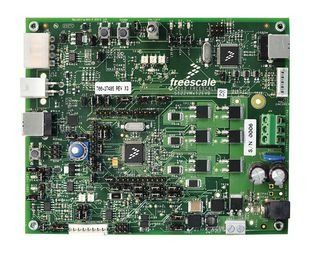

S12ZVM 16-bit Microcontroller Evaluation Board

The S12ZVMEVB is a development board for the S12 MagniV S12ZVM family of 16-bit MCUs targeted for 2-phase DC and 3-phase BLDC or PMSM motor control applications. The S12ZVM integrates a sophisticated MCU with an S12Z core, a 5V voltage regulator, a LIN physical layer and a gate driver unit capable of controlling up to 6 power MOSFETs and is targeted for automotive applications such as HVAC blowers, engine cooling fans, wiper systems, fuel or water pumps. The S12ZVMEVB is available as a standalone tool and is also available integrated in a BLDC or PMSM motor control kit. There are two versions of the EVB: The S12ZVML12EVB uses the S12ZVML128 integrating a LIN transceiver The S12ZVMC12EVB uses the S12ZVMC128 integrating a voltage regulator controller for an external CAN transceiver

S12ZVML128 (LIN version) or S12ZVMC128 (CAN version), in 64LQFP-EP

Built-in OSBDM debugger

Connector interface for 2-phase (DC) or 3-phase (BLDC or PMSM) motor

USB-to-SCI interface

LIN connector

External CAN transceiver

Hall-sensor interface and connector

Resolver interface and connector

Shunt resistors for current sensing on up to three phases and common DC link

One general purpose potentiometer, two LEDs, two push buttons and one switch
