S12 MagniV Microcontroller 3-Phase Sensorless PSMS Development Kit

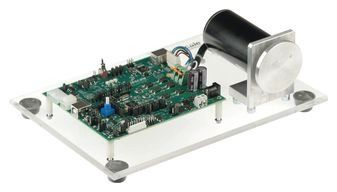

The MTRCKTSPNZVM128 motor control development kit is ideal for sensorless applications required to control one PMSM motor, such as HVAC or electric pumps. The kit is designed to enable rapid prototyping and evaluation of the motor control application without the need to wait for the final hardware design. The kit includes a S12 MagniV MC9S12ZVML128 microcontroller evaluation board and the 3-phase low-voltage PMSM/BLDC motor. An integral part of the automotive motor control development kit is the application software which provides a complete reference implementation of the PMSM motor control application and also takes advantage of the Automotive Math and Motor Control Library Set.

S12 MagniV MC9S12ZVML128 microcontroller evaluation board

Supports low-voltage PMSM/BLDC motors

DC-bus overvoltage, overcurrent and undervoltage fault detection

FreeMASTER visualization/configuration support

ANSI-C based motor control reference software with easy portability

Extensive documentation for software and hardware
