S12 MagniV 16-Bit Microcontroller Based Mini Board For Sensorless Motor Control

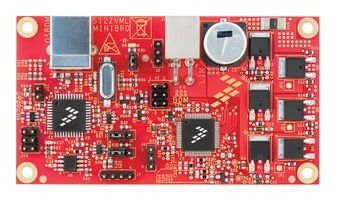

The S12ZVML-Mini Board (MINIBRD) features the S12 MagniV S12ZVM 16-bit MCU that integrates an automotive voltage regulator, a LIN physical interface and a gate driver unit able to drive up to six external MOSFETs. The small footprint board is designed for 3-phase BLDC and PMSM sensorless motor control applications as well as DC applications requiring load switching and load current monitoring and can be controlled using LIN and FreeMASTER The application software provides a complete reference implementation of a motor control application and takes advantage of the Automotive Math and Motor Control Library Set.

• S12 MagniV S12ZVM MCU mini board design
• Supports low-voltage BLDC, PMSM and DC motors
• DC-bus overvoltage, overcurrent and undervoltage fault detection
• FreeMASTER visualization/configuration support
• ANSI-C based motor control reference software with easy portability
• Extensive documentation for software and hardware
