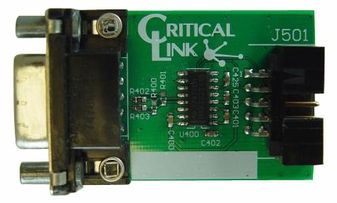

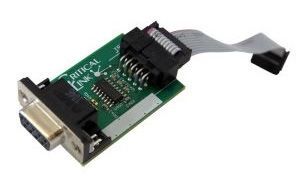

RS232 Standard Serial Interface Expansion Kit

The RS232 Expansion Kit is compatible with Critical Link’s line of MitySOM and MityDSP based development kits; one is required to interface with this expansion kit and all MitySOM/MityDSP based System on Modules support this kit.The RS-232 Expansion Kit provides a standard serial interface at data rates up to 115,200 baud. The serial interface is routed to one of the UART serial ports of MitySOM/MityDSP depending on the Expansion Header used on a MitySOM/MityDSP based Development Kit.

• 1 RS-232 Compliant Output
• 1 RS-232 Compliant Input
• RS232 Protocol
  • Up to 115,200 baud rate
• On-Board TX/RX Output Swapping
  • Resistor changeable
• Compatible with MitySOM/MityDSP based Development Kits from Critical Link
