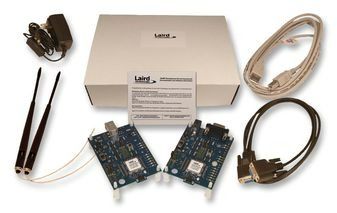

RM024 Series RAMP ISM Module Development Kit

Laird RAMP (Range Amplified Multipoint) modules are designed to provide robust wireless communications for any number of applications requiring a wireless transport for serial data. RAMP modules feature a Frequency Hopping Spread Spectrum (FHSS) protocol for excellent interference and multipath immunity. RAMP modules server/client architecture allows for more than 16 million clients to be addressed and communicating within the network. The RM024 RAMP module improves upon Laird’s 2.4 GHz RAMP predecessors by lowering power consumption through the use of three different sleep mode options, an improved link budget, the ability for close proximity operation at low power, and the inclusion of a switchable antenna output.

• Retries and acknowledgements
• Configurable network parameters
• Multiple generic I/O
• 280 kbps or 500 kbps RF data stream
• Idle current draw of 9.5 mA, sleep current of <1 uA (varies depending on sleep mode)
• Software-selectable interface baud ranging from 1200 bps to 230.4 kbps
• Upgradable FW through serial port
• Low cost, low power, and small size ideal for high volume, portable, and battery powered applications
• All modules are qualified for Industrial temperatures (-40°C to 85°C)
• Advanced configuration available using Laird’s Command Interface
• Easy-to-use Laird configuration and test utility software
• Switchable antenna output, either integrated antenna or external antenna through U.FL
