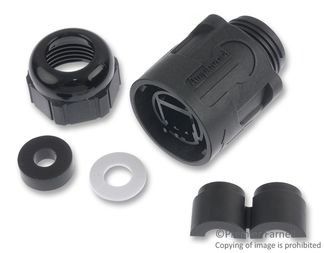

RJF REVERSE BAYONET PLUG

RJFRB allows you to use an Ethernet Class E / Cat 6 connection for 10 BaseT, 100 BaseTX or 1000 BaseT up to 250 MHz networks in harsh environments. With the patented RJStop system you can use a standard RJ45 cordset in a protective composite plug which will protect it from shocks, dust and fluids.

• Sealed against fluids and dust (IP68)
• Shock, vibration and traction resistant
• No cabling operation in field, no tools required
• Reverse bayonet coupling
• RJ45 cordset retention in the plug: 70 N in the axis
• Mating cycles: 500 min
• Compatible with cable diameter from 5,5 mm [0.216 in] to 7 mm [0.275 in]
