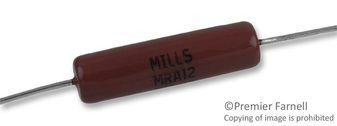

Res Wirewound 9.1 Ohm 1% 4W ±50ppm/°C Conformal AXL Thru-Hole Bulk
Res Wirewound 9.1 Ohm 1% 4W ±50ppm/°C Conformal AXL Thru-Hole Bulk
- High temperature coating (> 350°C)
- Non-magnetic and all welded constructions greatly enhance frequency response. Combined with non-inductive Ayrton-Perry winding the inductive reactance and signal loss are almost totally eliminated.
- Ideal for Audio Industry
Характеристики
| Бренд | Vishay |
|---|---|
| Длина | 16.51 mm |
| Lead Finish | Tin |
| Рабочая температура | -65 to 250 °C |
| Tolerance | 1 % |
| Resistanc | 9.1 Ohm |
| Temperatu | 50.0000 ppm/°C |
| Power Rating | 4.0000 W |
| Описание продукта | 16.51 mm |
| Диаметр | 4.24 mm |
| Terminati | Axial |
| Case Style | Conformal |
| Type Prod | Wirewound |
| Schedule B | 8533210080 |
| HTSN | 8533210080 |
| Страна происхождения | United States |
SKU: MRA-059R100FE12
