Res Wirewound 0.59 Ohm 1% 1/2W ±50ppm/°C Molded AXL Thru-Hole

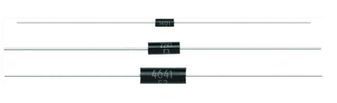

High stability and low temperature coefficient are the main features of the precision wirewound resistors type RMB RMBS models just as maintenance parts. Their performances can be compared with those of the best film resistors but they have in addition a greater power rating. RMBS styles meet the more severe requirements of NF C 83-210 (all RMBS styles are approved) and characteristic U of MIL-R-26 E (approximate size of RW 70 and 79 resistors) specifications.

• 0.75 W to 3 W at 25°C
• NF C 83-210
• CECC 40201-005
• Low temperature coefficient =± 50 ppm/°C
• Low ohmic values 15 m? available
• Excellent behavior against humidity
• Electrical insulation
• Mechanical strength
• Accurate sizes
• Termination = Sn/Ag/Cu or pure matte tin according to the ohmic value
