Real Time Clock Parallel 2KByte 24-Pin PCDIP Tube

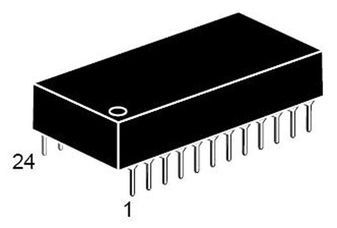

The M48T02/12 TIMEKEEPER RAM is a 2 Kb x 8 non-volatile static RAM and real-time clock which is pin and functional compatible with the DS1642.A special 24-pin, 600 mil DIP CAPHATpackage houses the M48T02/12 silicon with a quartz crystal and a long life lithium button cell to form a highly integrated battery-backed memory and real-time clock solution.The M48T02/12 button cell has sufficient capacity and storage life to maintain data and clock functionality for an accumulated time period of at least 10 years in the absence of power over the operating temperature range. The M48T02/12 is a non-volatile pin and function equivalent to any JEDEC standard 2 Kb x 8 SRAM. It also easily fits into many ROM, EPROM, and EEPROM sockets, providing the non-volatility of PROMs without any requirement for special WRITE timing or limitations on the number of WRITEs that can be performed.

Integrated, ultra low power SRAM, real-time clock, and power-fail control circuit

BYTEWIDE^™RAM-like clock access

BCD coded year, month, day, date, hours, minutes, and seconds

Typical clock accuracy of ±1 minute a month, at 25 °C

Software controlled clock calibration for high accuracy applications

Automatic power-fail chip deselect and WRITE protection

WRITE protect voltages (V_PFD= power-fail deselect voltage):

M48T02: V_CC= 4.75 to 5.5 V; 4.5 V = V_PFD= 4.75 V

M48T12: V_CC= 4.5 to 5.5 V; 4.2 V = V_PFD= 4.5 V

Self-contained battery and crystal in the CAPHAT^™DIP package

Pin and function compatible with JEDEC standard 2 K x 8 SRAMs

RoHS compliant

Lead-free second level interconnect
