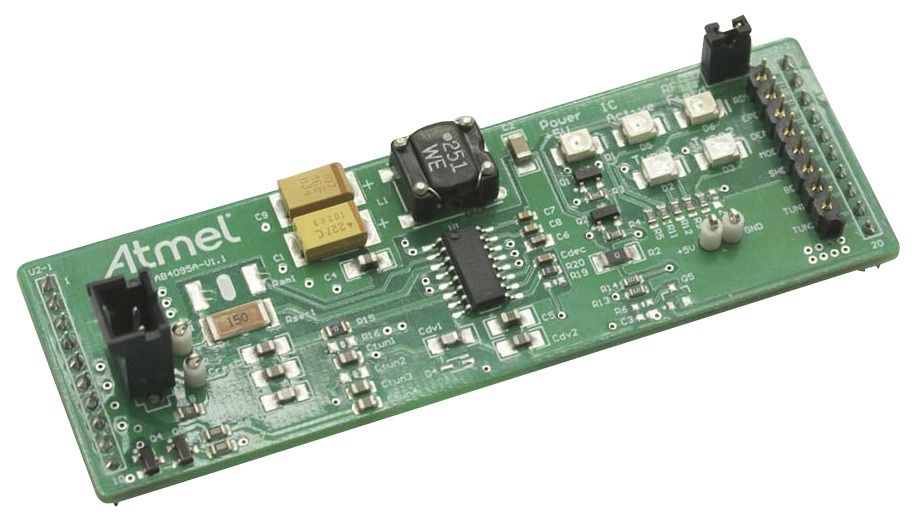

Reader Board For AVR-based 125/134.2KHz RFID System

Several design and evaluation kits for a fast and easy way to test the LF-RFID technology but also developing the final product. The most important one is the ATA2270-EK3. It provides a complete self-contained tool to begin using RFID systems, even for users who are short on RFID experience. It supplies an LCD and control buttons to enable interaction with the RFID system. This stand-alone but also PC-GUI based system supports many of RFID tag chips. The second group of kits is based on two readers supplied by an external company. One of them is working at 125kHz ( ATARFID-EK1) the other one at 134.2kHz ( ATARFID-EK2) targeting access control applications and animal ID applications. Third kit is the ATA6286-EK3. The evaluation kit for active RFID solution. This works at 2 frequency bands: 125kHz and 433MHz.
