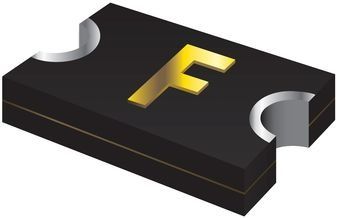

PTC Resettable Fuse 40A 16V T/R
PTC Resettable Fuse 40A 16V T/R
- Compliant with AEC-Q200 Rev-C- Stress Test Qualification for Passive Components in Automotive Applications
- Operating temperature range up to 125 °C
- Low thermal derating factor
- Higher hold currents at elevated temperature
- RoHS compliant
Характеристики
| Бренд | Bourns |
|---|---|
| Длина | 2.3 mm |
| Trip Current | 0.6 A |
| Number Of | 2 |
| Max Proce | 260 |
| Описание продукта | 2.3 x 1.5 x 0.8 |
| Maximum V | 16 V |
| Рабочая температура | -40 to 125 °C |
| Maximum C | 40 A |
| Schedule B | 8533400080 |
| HTSN | 8533408050 |
| Страна происхождения | Китай |
| Supplier | 805 |
| Msl Level | 1 |
| Hold Current | 0.1 A |
| Maximum T | 1.5@2.5A s |
| Minimum I | 1 Ohm |
| Typical P | 1 W |
| Maximum I | 12 Ohm |
SKU: MF-PSHT010X-2
