Programmable Touch Screen Controller 32-Pin TSSOP Rail

The TSC2102 is a highly integrated combination resistive touch screen controller with on-chip processor and audio DAC. The touch screen portion of the TSC2102 contains a 12-bit 4-wire resistive touch screen converter complete with drivers, and interfaces to the host controller through a standard SPI serial interface. The on-chip processor provides extensive features specifically designed to reduce host processor and bus overhead, with capabilities that include fully automated operating modes, programmable conversion resolution up to 12 bits, programmable sampling rates up to 125 kHz, programmable conversion averaging, and programmable on-chip timing generation. The TSC2102 also features a high-performance audio DAC with 16, 20, 24, or 32-bit stereo playback functionality at up to 48 ksps. The stereo output drivers on the TSC2102 can be programmed for headphone drive or line-level drive, and support capless as well as ac-coupled output configurations. The digital audio data format is programmable to work with popular audio standard protocols (I2S, DSP, left/right justified) in master or slave mode, and also includes an on-chip PLL for flexible clock generation capability. The TSC2102 offers two battery measurement inputs capable of reading battery voltages up to 6 V, while operating at only 2.7 V. It also has an on-chip temperature sensor capable of reading 0.3°C resolution. The TSC2102 is available in a 32-lead TSSOP.

4-Wire Touch Screen Interface

Integrated Touch Screen Processor With Fully Automated Modes of Operation

Programmable Converter Resolution, Speed, and Averaging

Programmable Autonomous Timing Control

Direct Battery Measurement

On-Chip Temperature Measurement

Stereo Audio Playback Up to 48 ksps

97-dB Stereo Audio Playback

Integrated PLL for Audio Clock Generation

Programmable Digital Audio Effects Processing

Stereo Headphone Amplifier

SPI™ Serial Interface

Glueless Interface With OMAP™ and Xscale™ Processors

Full Power-Down Control

Low Power: 11-mW Stereo Audio Playback

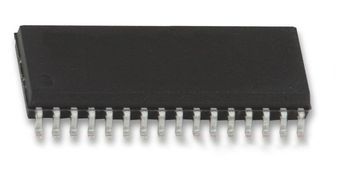

32-Pin TSSOP Package

APPLICATIONS

• Personal Digital Assistants
• Smart Cellular Phones
• MP3 Players
