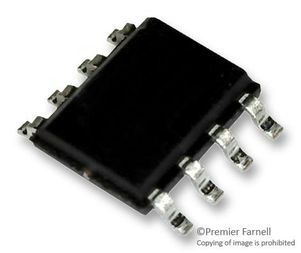

Processor Supervisor 4.75V 3V/3.3V/5V 8-Pin SOIC T/R

The MIC705 are inexpensive microprocessor supervisory circuits that monitor power supplies in microprocessor-based systems. The circuit functions include a watchdog timer, microprocessor reset, power-failure warning, and a debounced manual reset input. The MIC705 offer a watchdog timer function. Supply voltage monitor levels of 4.65V and 4.4V are available. The MIC705 have a nominal reset threshold level of 4.65V. When the supply voltage drops below the respective reset threshold level, /RESET is asserted. Debounced manual reset input is TTL/CMOS compatible Reset pulse width: 200ms Watchdog timer: 1.6s (MIC705) 4.65V or 4.40V precision voltage monitor Early power-fail warning or low-battery detect
