Processor Supervisor 4.38V/Adj 2V to 5.5V 8-Pin PDIP

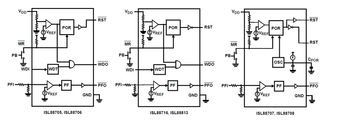

Designed with high reset threshold accuracy and low powerconsumption, the ISL88705, ISL88706, ISL88707,ISL88708, ISL88716 and ISL88813 devices aremicroprocessor supervisors that are designed to monitorpower-supply and battery functions in microprocessorsystems. They can help to lower system cost, reduce boardspace requirements and increase the reliability of systems.These devices provide essential functions such as supplyvoltage supervision by asserting a reset output duringpower-up and power-down as well as during brownoutconditions. An auxiliary voltage monitor is provided fordetecting power failures warning the system of low batteryconditions or presence detection. In addition, anindependent watchdog timer helps to monitormicroprocessor activity every 1.6s (typical). An active-lowmanual reset is offered and reset signals remain asserteduntil VDD returns to proper operating levels.Users can increase the nominal 200ms power-on resettime-out delay by adding an external capacitor to the CPORpin on the ISL88707 and ISL88708.

• Fixed-Voltage Options Allow Precise Monitoring of +3.0V, +3.3V, and +5.0V Power Supplies
• Additional Voltage Monitor for Power-Fail Detection or Low-Battery Warning
  • Monitors Voltages Down to 1.25V
  • Adjustable Power-Fail Input Threshold
• Watchdog Timer Capability With 1.6s Time-out
• Both RST and RST Outputs Available
• 140ms Minimum Reset Pulse Width with Option to Customize Using an External Capacitor
• Manual Reset Input on all Devices
• Reset Signal Valid Down to VDD = 1V
• Accurate ±1.8% Voltage Threshold
• Immune to Power-Supply Transients
• Ultra Low 10µA Maximum Supply Current at 3V
• Pb-Free (RoHS Compliant)
