Processor Supervisor 4.38V 4.5V to 5.5V 8-Pin SOIC

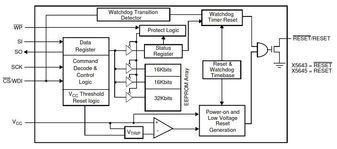

These devices combine four popular functions, Power-on Reset Control, Watchdog Timer, Supply Voltage Supervision, and Block Lock Protect Serial EEPROM Memory in one package. This combination lowers system cost, reduces board space requirements, and increases reliability. The Watchdog Timer provides an independent protection mechanism for microcontrollers.The user selects the interval from three preset values. Once selected, the interval does not change, even after cycling the power.

• Selectable watchdog timer
• Low VCC detection and reset assertion
  • Five standard reset threshold voltages -
  • Re-program low VCC reset threshold voltage using special programming sequence
  • Reset signal valid to VCC = 1V
• Determine watchdog or low voltage reset with a volatile flag bit
• 32kbits of EEPROM
• Built-in inadvertent write protection - Power-up/power-down protection circuitry - Protect 0, 1/4, 1/2 or all of EEPROM array with Block Lock™ protection - In circuit programmable ROM mode
• 2MHz SPI interface modes (0,0 and 1,1)
• Minimize EEPROM programming time - 32-byte page write mode - Self-timed write cycle - 5ms write cycle time (typical)
• 2.7V to 5.5V and 4.5V to 5.5V power supply operation
• Available packages - 14 Ld TSSOP, 8 Ld SOIC, 8 Ld PDIP
• Pb-free (RoHS compliant)
