Processor Supervisor 2.93V 1V to 5.5V 8-Pin Micro T/R

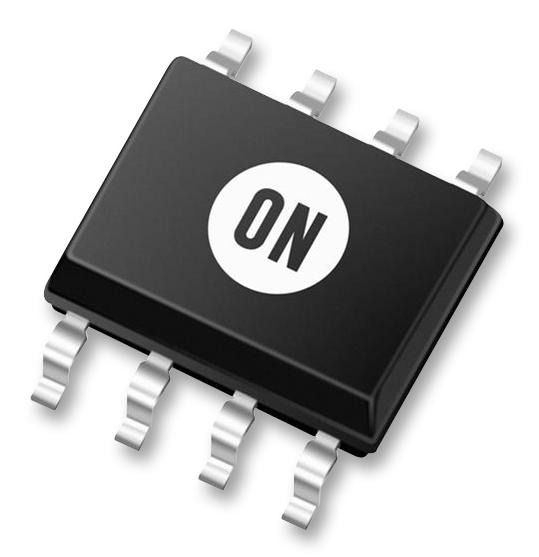

The MAX707/708 are cost-effective system supervisor circuits designed to monitor Vcc in digital systems and provide a reset signal to the host processor when necessary. No external components are required. The reset output is driven active within 20 ? sec of Vcc falling through the reset voltage threshold. Reset is maintained with 200 mS of delay time after Vcc rise above the reset threshold. The MAX707/708 have a low quiescent current of 12 ?A at Vcc = 3.3 V, an active-high RESET and active-low RESET with a push-pull output. The output is guaranteed valid down to Vcc = 1.0 V. The MAX707/708 have a Manual Reset MR input and a +1.25 V threshold detector for power-fail input PFI. These devices are available in a Micro8 and SOIC-8 package.

• Precision Supply-Voltage Monitor
  MAX707: 4.63 V Reset Threshold Voltage
  MAX708: Standard Reset Threshold Voltages (Typical): 4.38 V, 3.08 V, 2.93 V, 2.63 V
• Reset Threshold Available from 1.6 V to 4.9 V with 100 mV Increments (Factory Option)
• 200 mS (Typ) Reset Timeout Delay
• 12 µA (Vcc = 3.3 V) Quiescent Current
• Active_High and Active_Low Reset Output
• Guaranteed RESET_L and RESET Output Valid to Vcc = 1.0 V
• Voltage Monitor for Power-Fail or Low-Battery Warning
• 8 Pin SO or Micro8 Package
• Pb-Free Packages are Available
