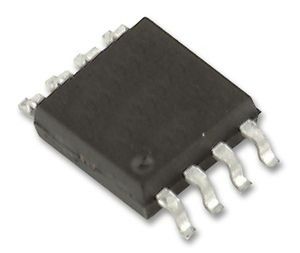

Precision ECL Differential Receiver/Driver 8-Pin MSOP

The SY100EP16U is a 2.5/3.3V, high-speed, fully differential ECL Receiver/Driver that can process clock signals as fast as 3GHz or data patterns up to 2.5Gbps. The differential input includes an internal 75k? pulldown resistor on both the true and complement inputs and a 37.5k? pull-up resistor in the complement input only. For AC-coupled input interface and single-ended applications, an integrated voltage reference (VBB) is provided. Single-ended CLK input operation is limited to VCC = 3.0V in PECL mode, or VEE = -3.0V. The VBB pin should be used only as a bias for the SY100EP16U since its current sink/source capability is limited. Whenever used, the VBB pin should be bypassed to the most positive supply voltage. The output is 800mV ECL, with fast rise/fall times guaranteed to be less than 200ps. When the inputs are left open, the internal input clamps will force the Q output low. The SY100EP16U operates from a 2.5V ±5% or 3.3V ±10% supply and is guaranteed over the full industrial temperature range (-40°C to +85°C). The SY100EP16V is part of Micrel’s high-speed, Precision Edge® product line. Precision 800mV ECL Receiver/Driver 10K and 100K ECL compatible I/O Guaranteed AC performance over temperature and voltage: – DC-to > 2.5Gbps throughput – 240ps typical propagation delay (D-to-Q) – < 0.3psRMS random jitter PECL and NECL operation capability PECL operating range: VCC = 2.375V to 3.63V with VEE = 0V NECL operating range: VCC = 0V with VEE = -2.375V to -3.63V 2.5V ±5% or 3.3V ±10% power supply operation Industrial temperature range: -40°C to +85°C Available in 8-pin (2mm x 2mm) MLF® , 8-pin MSOP, 8-pin SOIC packages
