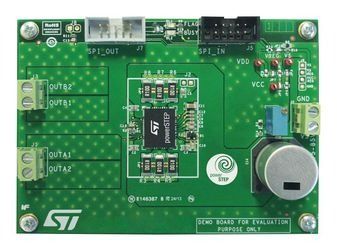

powerSTEP01 Microstepping Controller and Power MOSFET Demonstration Board

The EVLPOWERSTEP01 demonstration board is a microstepping motor driver delivering up to 10 Ar.m.s.. In combination with the STEVAL-PCC009V2 communication board and the evaluation software, the board allows the user to investigate all the features of the powerSTEP01. In particular, the board can be used to check the performance and to regulate the parameters in order to fit the application requirements.The EVLPOWERSTEP01 supports the daisy chain configuration making it suitable for the evaluation of the powerSTEP01 in multi motor applications.

Voltage range from 10.5 V to 85 V

10 A_r.m.s.maximum output current

Up to 1/128 microstep

Programmable speed profile and advanced commands

Adjustable output slew rate

SPI with daisy chain feature

FLAG and BUSY LED indicators

Flexible supply voltage management

Suitable to be used in combination with STEVAL-PCC009V2
