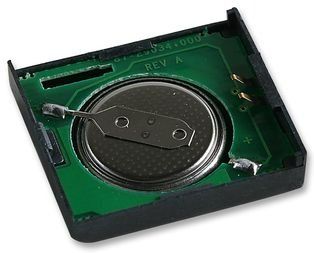

PowerCap with Crystal 34-Pin PowerCap Module

The DS9034 PowerCap is designed to be a lithium power source for nonvolatile timekeeping RAMs in Dallas Semiconductor’s directly surfacemountable PowerCap Module (PCM) package. After a PowerCap module board has been soldered in place and cleaned, the DS9034PCX PowerCap is placed on top of the PCM board to form a complete PowerCap module package. The PowerCap is keyed to prevent incorrect attachment. The DS9034 can be easily removed by inserting a regular screwdriver into a detachment feature and prying gently outward and upward to release the PowerCap from the PowerCap module board.

• Provides 10 Years of Battery Backup Power for Nonvolatile Timekeeping RAMs in the PowerCap Module Package (PCM)
• Snaps Directly Onto Surface-Mounted PowerCap Module Boards
• Detachment Feature Allows Easy Removal
• Compatible with these 34-Pin PowerCap Module Boards: DS1386P DS1553P/YP/WP DS1486P DS1554P/YP/WP DS1643P DS1556P/YP/WP DS1644P DS1557P/YP/WP DS1646P DS1744P/YP/WP DS1647P DS1746P/YP/WP DS1743P/WP DS1747P/YP/WP DS1251YP/WP DS1248YP/WP DS1244YP/WP
