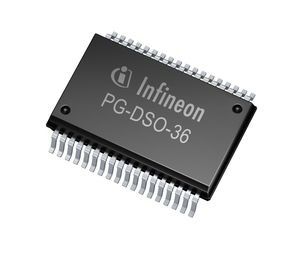

Power Switch Lo Side 1A 36-Pin DSO T/R

The TLE7230R is an Octal Low-Side Switch in Smart Power Technology (SPT) with a Serial Peripheral Interface (SPI) and eight open drain DMOS output stages. It is protected by embedded protection functions and designed for automotive and industrial applications. The output stages are controlled via an SPI Interface. Additionally, four channels can be controlled in parallel for PWM applications. These features make the TLE7230R particularly suitable for engine management and body systems.

• Protection Overload
  • short circuit
  • Over temperature
  • Overvoltage
• Low Quiescent Current< 10µA
• 16 bit SPI (for Daisychain)
• Direct Parallel Control of Four Channels
• PWM input (demux)
• Parallel Inputs High or Low Active Programmable
• Programmable functions
  • Boolean operation
  • Overload behavior
  • Over temperature behavior
  • Switching time
• General Fault Flag
• Digital Ports Compatible to 5V and 3,3 V Micro Controllers
• Electrostatic Discharge (ESD) Protection
• Full reverse current capability without latch up
• Green Product (RoHS compliant)
• AEC qualified
