Power Switch Hi Side 7A 5-Pin(4+Tab) TO-252

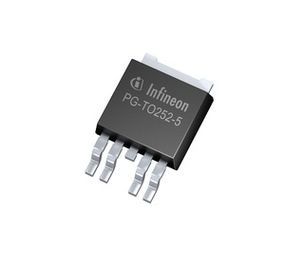

The BTS 6142 is a one channel high-side power switch in PG-TO252-5-11 package providing embedded protective functions including ReverSave. The power transistor is built by a N-channel vertical power MOSFET with charge pump. The design is based on Smart SIPMOS chip on chip technology.
- Very low standby current
- Current controlled input pin
- Improved electromagnetic compatibility (EMC)
- Fast demagnetization of inductive loads
- Stable behavior at under-voltage
- Green Product (RoHS compliant)
- AEC qualified
Характеристики
| Бренд | Infineon |
|---|---|
| Schedule B | 8542390000 |
| HTSN | 8542390001 |
| Страна происхождения | United States |
| Maximum P | 50000 mW |
| Supplier | TO-252 |
| Описание продукта | 6.5 x 6.22 x 2.3 mm |
| Рабочая температура | -40 to 150 °C |
| Minimum O | 7 A |
| Input Voltage | -16 to 63 V |
| Switch On | 0.012 Ohm |
| Lead Finish | Matte Tin |
| Max Proce | 260 |
| Msl Level | 1 |
| Type Prod | High Side |
| Number Of | 1 |
| Operating | 5.5, 38 V |
| Supply Current | 1.4 mA |
SKU: BTS6142DXT
