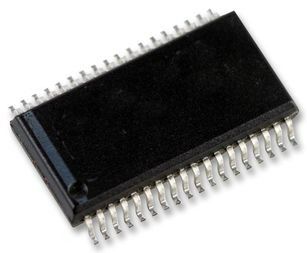

Power Switch Hi Side 36-Pin SSOP T/R

The MAX5945 quad network power controller is designed for use in IEEE 802.3af-compliant power-sourcing equipment (PSE). The device provides power devices (PD) discovery, classification, current-limit, and both DC and AC load disconnect detections. The MAX5945 can be used in either endpoint PSE (LAN switches/routers) or midspan PSE (power injector) applications. The MAX5945 can operate autonomously or be controlled by software through an I²C-compatible interface. Separate input and output data lines (SDAIN and SDAOUT) allow usage with optocouplers. The MAX5945 is a slave device. Its four address inputs allow 16 unique MAX5945 addresses. A separate active-low INT output and four independent shutdown inputs (active-low SHD_) allow fast response from a fault to port shutdown. An active-low RESET input allows hardware reset of the device. A special watchdog feature allows the hardware to gracefully take over control if the software crashes. A cadence timing feature allows the MAX5945 to be used in midspan systems. The MAX5945 is fully software configurable and programmable. A class-overcurrent detection function enables system power management to detect if a PD draws more current than the allowable amount for its class. Other features are input under/overvoltage lockout, overtemperature protection, output-voltage slew-rate limit during startup, power-good, and fault status. The MAX5945"s programmability includes gate-charging current, current-limit threshold, startup timeout, overcurrent timeout, autorestart duty cycle, PD disconnect AC detection threshold, and PD disconnect detection timeout. The MAX5945 is available in a 36-pin SSOP package and is rated for both extended (-40°C to +85°C) and commercial (0°C to +70°C) temperature ranges.

• IEEE 802.3af Compliant
• Controls Four Independent, -48V-Powered Ethernet Ports in Either Endpoint or Midspan PSE Applications
• Wide Digital Power Input, V_DIG, Common-Mode Range: V_EE to (AGND + 7.7V)
• PD Violation of Class Current Protection
• PD Detection and Classification
• Provides Both DC and AC Load Removal Detections
• I²C-Compatible, 3-Wire Serial Interface
• Fully Programmable and Configurable Operation Through I²C Interface
• Current Foldback and Duty-Cycle-Controlled/Programmable Current Limit
• Short-Circuit Protection with Fast Gate Pulldown
• Direct Fast Shutdown Control Capability
• Programmable Direct Interrupt Output
• Watchdog Mode Enable Hardware Graceful Takeover
