Power Switch Hi Side 2A 14-Pin DSO EP T/R

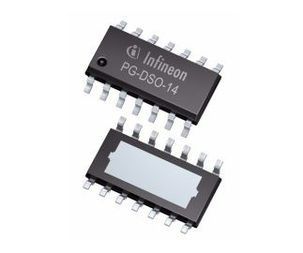

The BTS5180-2EKA is a 180 mO dual channel Smart High-Side Power Switch, embedded in a PG-DSO-14-40 EP, Exposed Pad package, providing protective functions and diagnosis. The power transistor is built by an N-channel vertical power MOSFET with charge pump. The device is integrated in Smart6 technology. It is specially designed to drive lamps up to 1 * 5W, as well as LEDs in the harsh automotive environment.
Two channel device Very low stand-by current 3.3 V and 5 V compatible logic inputs Electrostatic discharge protection (ESD) Optimized electromagnetic compatibility Logic ground independent from load ground Very low power DMOS leakage current in OFF state Green product (RoHS compliant) AEC qualified
Характеристики
| Бренд | Infineon |
|---|---|
| Schedule B | 8542390000 |
| HTSN | 8542390001 |
| Страна происхождения | Malaysia |
| Maximum P | 1600 mW |
| Supplier | DSO EP |
| Описание продукта | 8.65 x 3.9 x 1.47 |
| Рабочая температура | -40 to 150 °C |
| Minimum O | 2 A |
| Input Voltage | -0.3 to 6 V |
| Switch On | 0.18 Ohm |
| Lead Finish | Tin |
| Max Proce | 260 |
| Msl Level | 3 |
| Type Prod | High Side |
| Number Of | 2 |
| Operating | 5, 28 V |
| Supply Current | 5 mA |
SKU: BTS5180-2EKA
