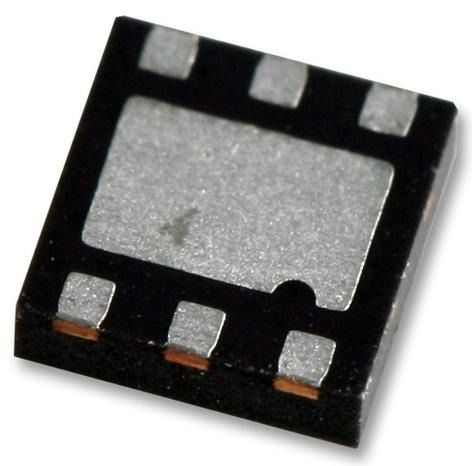

Power Switch 6-Pin MicroFET T/R

The FPF1007 is a low P-ChanneI MOSFET load switches offered in a selection of 10 vs, 80 vs, and 1 ms slew rate turn-on options for transient / in-rush current control. To support trends in mobile application requirements, the minimum operating input voltage has been reduced down to 1.2 V, the input current leakage has been minimized to extend battery life and the ESD-protection has been designed to withstand a minimum of 8 kV (HBM) and 2 kV (CDM). The switch is controlled by an active-high logic input (ON pin), allowing direct interface with a low-voltage control signal. An internal ON pin pull-down resistor protects against unintentional device turn-on in the initial state. An on-chip pull-down resistor on the output is enabled when the switch is turned-off and provides quick, robust discharge of the output load.

• 1.2 to 5.5 V Input Voltage Range
• Typical Ron = 30 m? at Vin = 5.5 V
• Typical Ron = 40 m? at Vin = 3.3 V
• Fixed Three Different Turn-on Rise Time 10 ps / 80 ps / 1 ms
• Low 10 VA at VIN 3.3 V Quiescent Current
• Internal ON Pin Pull Down
• Output Discharge Function
• ESD Protection above 8000 V HBM and 2000 V CDM
• RoHS Compliant
