Power Switch 3A 6-Pin WLCSP T/R

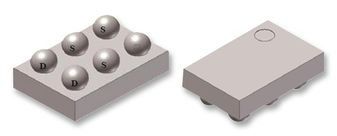

The FPF1004 is a low Ros P-channel MOSFET load switches with controlled turn-on. The input voltage range operates from 1.2 V to 5.5 V to fulfil today"s ultra-portable device supply requirements. Switch control is accomplished with a logic input (ON) capable of interfacing directly with low-voltage control signal. In FPF1004, a 120 Q on-chip load resistor is added for output quick discharge when the switch is turned off. Both FPF1003A and FPF1004 are available in a space- saving 1 _Ox1.5 mm2 wafer-level chip-scale package.

• 1.2 V to 5.5 V Input Voltage Operating Range
• Typical Ros(0N):
  • 30 m? at Vin = 5.5 V
  • 35 m? at Vin = 3.3 V
• ESD Protected: Above 8000 V HBM
• ROHS Compliant
