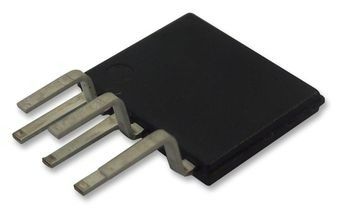

Power Switch 0.975A 6-Pin ESIP-C

The LinkSwitch-3 family of ICs dramatically simplifies low power CV/CC charger designs by eliminating an optocoupler and secondary control circuitry. The device introduces a revolutionary control technique to provide very accurate output voltage and current regulation, compen-sating for transformer and internal parameter tolerances along with input voltage variations. The device incorporates a 725 V power MOSFET, a novel ON/OFF control state machine, a high-voltage switched current source for self biasing, frequency jittering, cycle-by-cycle current limit and hysteretic thermal shutdown circuitry onto a monolithic IC.

• Output Power - Adapter : 10 W
• Output Power - Open Frame : 10 W
• Dramatically Simplifies CV/CC Converters
• Eliminates optocoupler and all secondary CV/CC control circuitry
• Eliminates all control loop compensation circuitry
• Advanced Performance Features
• Compensates for transformer inductance tolerances
• Compensates for input line voltage variations
• Compensates for cable voltage drop
• Compensates for external component temperature variations
• Very accurate IC parameter tolerances using test trimming technology
• Frequency jittering greatly reduces EMI filter cost
• Programmable switching frequency up to 85 kHz to reduce transformer size
• Minimum operation frequency fixed to improve transient load response
• Green Package
  • Halogen free and ROHS compliant package
