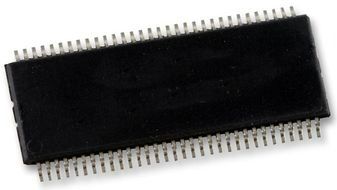

PLL Clock Synthesizer Single 64-Pin TSSOP T/R

The 932SQL420 is a low power version of the CK420BQ synthesizer for Intel-based server platforms. The 932SQL420 is driven with a 25MHz crystal for maximum performance. It generates CPU outputs of 100Mhz. This device has a "low-drift" non-spread SAS/SRC PLL for use in systems that need to communicate across PCIe domains.

• 4 - Low-Power HCSL-compatible (LP-HCSL) CPU outputs
• 2 - LP-HCSL NS_SAS outputs
• 2 - LP-HCSL NS_SRC outputs
• 3 - LP-HCSL SRC outputs
• 1 - LP-HCSL DOT96 output
• 1V to 3.3V 48M output
• 5V to 3.3V PCI outputs
• 1V to 3.3V 14.318M output
• 0.5% down spread capable on CPU, SRC and PCI outputs; reduce EMI
• Additional down spread amounts selectable via SMBus; maximal system flexibility
• 64-pin TSSOP and MLF packages
