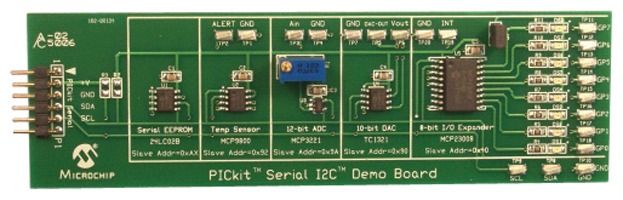

PICkit Serial I2C Demonstration Board

The PICkit Serial I2C Demo Board demonstrates I2C serial communications and operation of the following devices: 24LC02B - 2Kbit Serial EEPROM MCP9801 - High-Accuracy Temperature Sensor MCP3221 - Low-Power 12-Bit A/D Converter TC1321 - 10-Bit Digital-to-Analog Converter MCP23008 - 8-Bit I/O Expander The PICkit Serial I2C Demo Board was designed to easily connect to the PICkit Serial Analyzer (DV164122). The PICkit Serial Analyzer provides the I2C master mode serial communications and power. The PICkit Serial I2C Demo Board devices all operate in the I2C slave mode. The PICkit Serial I2C Demo Board can easily be connected to virtually any demo or development board by connecting the communications lines to connector P1

• I2C Serial Communications
• I2C Demo Board Operation
• I2C Demo Board Devices
