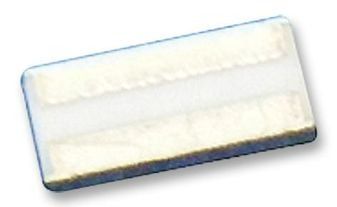

PICERJB1AF300U
PICERJB1AF300U
- Current Sensing resistor
- Small size and lightweight
- High reliability : Metal glaze thick fi lm resistive element and three layers of electrodes
- Suitable for both reflow and flow soldering
- Improved high-power/resistance to pulse characteristics by double-sided resistive elements structure : ERJ2LW, 3LW ,2BW, 3BW, 6BW, 8BW, 8CW
- Low TCR : ±50x10–6/°C (ERJ8CW)
- Low Resistance Value
- 5 mO, 10 mO : ERJ3LW
- 10 mO : ERJ2LW
- 10 mO to 50 mO : ERJ8CW
- 10 mO to 100 mO : ERJ6BW, 8BW
- 20 mO to 100 mO : ERJ3BW, ERJL14, L12
- 40 mO to 100 mO : ERJL1D, L1W
- 47 mO to 100 mO : ERJ2BW, ERJL03, L06, L08
- Reference Standards : IEC 60115-8, JIS C 5201-8, JEITA RC-2144
- AEC-Q200 qualified
- RoHS compliant
Характеристики
| Бренд | Panasonic |
|---|---|
| Schedule B | 8533210025 |
| HTSN | 8533210020 |
| Страна происхождения | Japan |
| Power Rating | 1 W |
| Temperatu | ±100 ppm/°C |
| Case Style | Molded |
| Resistor Type | Current Sense Wide Terminal |
| Tolerance | 1 % |
| Case Size | 1020 |
| Рабочая температура | -55 to 155 °C |
| Terminati | Wraparound |
| Resistanc | 30 Ohm |
| Длина | 5 mm |
| Упаковка | Emboss T/R |
| Family | ERJB1 |
SKU: ERJB1AF300U
