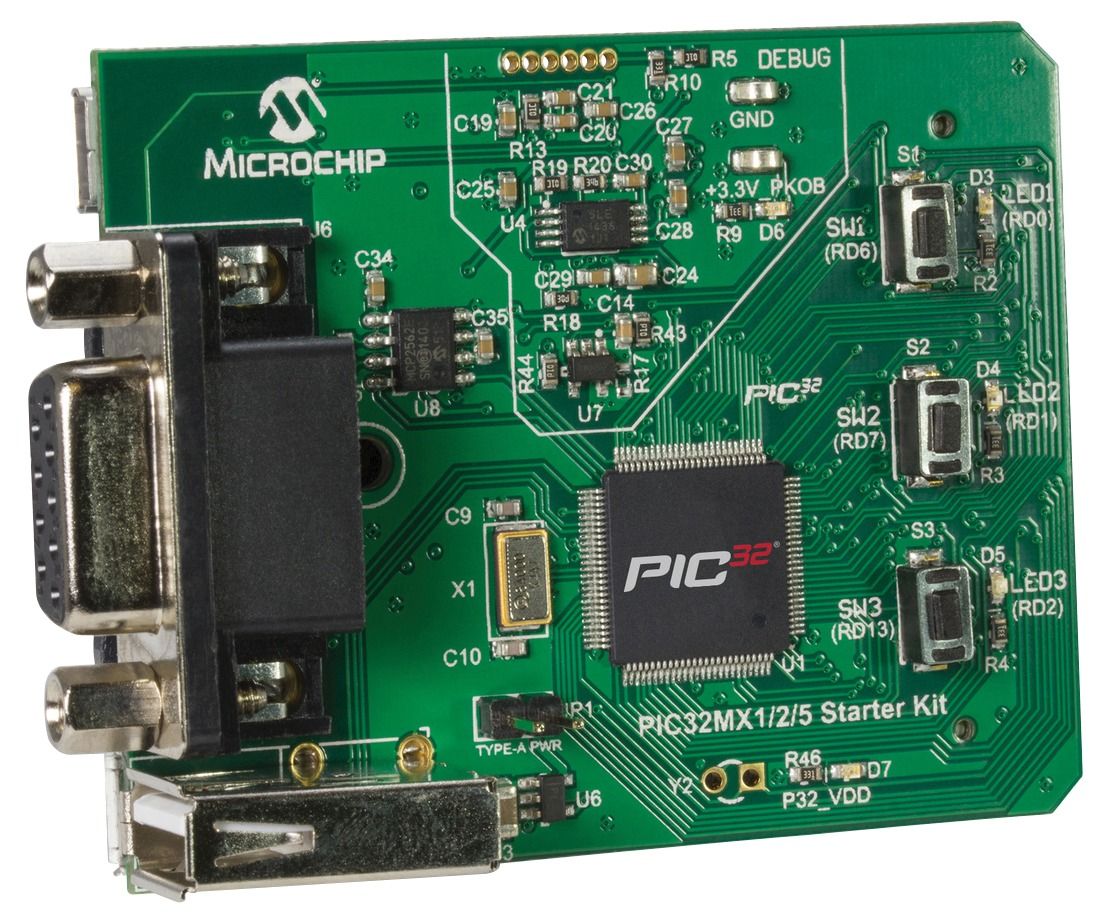

PIC32MX1/2/5 Microcontroller Starter Kit

The PIC32MX1/2/5 Starter Kit provides the user with an easy and cost effective option to experience the USB and CAN functionality of the new PIC32MX1/2/5 family of microcontrollers. The board features a 50MHz/83DMIPS PIC32MX570F512L MCU with 512 KB Flash, 64KB RAM, USB Device/Host/OTG, CAN 2.0B, 48 Channel ADC, Analog Comparators, SPI Ports and UARTs. The starter kit has an onboard high-speed CAN transceiver which serves as an interface between a CAN protocol controller and the physical two wire bus. It also comes equipped with an onboard DB9 connector to interface with the CAN2.0B based applications.

• PIC32MX570F512L MCU: 50MHz, 512 KB Flash/64 KB RAM
• MCP2562: A High-Speed CAN Transceiver
• DB9 Connector for CAN2.0B applications
• USB receptacles for USB development
• Expansion Connector to interface to PIC32 expansion boards
• User definable LEDs & push buttons
• Integrated Programmer/Debugger
