PIC18F45K50 8-bit Microcontroller FS USB Demonstration Kit

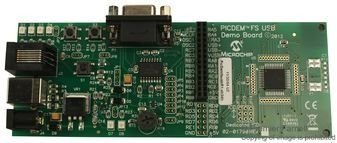

The PICDEM™ FS-USB is a demonstration and evaluation board for the PIC18F4550 family of Flash microcontrollers with full speed USB 2.0 interface. The board contains a PIC18F4550 microcontroller in a 44-pin TQFP package, representing the superset of the entire family of devices.The board comes pre-loaded with a USB bootloader that demonstrates the Enhanced Flash memory capabilities of the device. The PIC18F4550 can be re-programmed in circuit without an external programmer. A CD-ROM is also included in the kit which contains full documentation about the board, application notes and software libraries for support of the HID, CDC and custom classes.

• 48 MHz maximum operating speed (12 MIPS)
• 32 Kbytes of Enhanced Flash memory
• 2 Kbytes of RAM (of which 1 Kbyte dual port)
• 256 bytes of data EEPROM
• Full Speed USB 2.0 interface (capable of 12 Mbit/s data transfers), including FS-USB transceiver and voltage regulator
