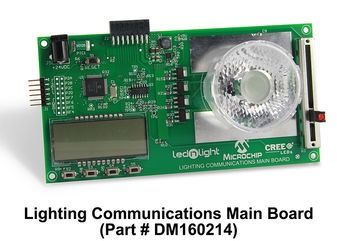

PIC16F1947 8-bit Microcontroller Lighting Communications Development Platform Development Board

The Lighting Communications Development Platform provides a universal lighting development platform for the creation of communications enabled lighting applications. The platform consists of a main board and various communications interface adapters to support in the development of DALI, DMX512A, as well as future protocols (eg. RF). To utilize the communications platform, a minimum of (2) main or (2) prototyping boards and (2) adapters are required – connected via appropriate cabling (eg. RJ45 patch cable, DMX512A 5-pin barrel cable, or DALI 2-wire). The communication platform is compatible with commercially available DALI/DMX512A products and can be integrated into existing lighting networks during development or utlized with multiple communication platforms to simulate large lighting networks.

• Populated with PIC16F1947 for user interface, communications, and LED control
• 4-channel constant current control with RGBW color mixing and dimming
• Slider potentiometer for dimming control
• Universal Communications Adapter Interface
• DALI, DMX512A, and future support
• Master & Slave support for DALI and DMX512A
• DALI commissioning and support for custom zones & scenes
• LCD display & push button user interface
• Customizable capabilities
• Populated with MCP6004 Opamp for LED current feedback
• Populated with MCP16322 for 5V power conversion
• Populated with Cree XLamp MC-E Color delivering red, green, royal-blue, and white in a single LED – High lumen output in a small form factor
• Populated with the LEDnLIGHT collimator LLC19N optic and holder by Gaggione for high quality color mixing and tight beam control
• 9-12V Power Supply Input
