Peripheral Module Serial I2C Through Hole Box

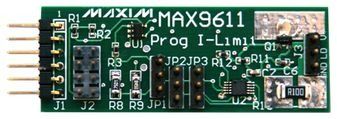

The MAX9611PMB1 peripheral module provides the necessary hardware to interface the MAX9611 current-sense amplifier with 12-bit ADC and op amp, along with the MAX5380 8-bit DAC, to any system that utilizes Pmod-compatible expansion ports configurable for I²C communication. The IC is configured with an external p-channel FET and a current-sense resistor to form a current-limiting circuit capable of handling currents up to 1A. An 8-bit DAC (U1) is used to set the current-limit point programmatically by the host through the I²C bus. In addition to providing a programmable current-limit function, the ADC within the IC measures the load current/voltage and the set-point voltage that can be read by the host through the I²C bus. Refer to the MAX9611 IC data sheet for detailed information regarding operation of the IC.

• Programmable Current Limit Up to 1A
• Two Current Ranges (Jumper Selectable)
• Measure and Read Back Load Current, Load Voltage, and Set Point
• Power Source Up to 30V
• Jumper-Selectable I²C Address Setting for the MAX9611
• 6-Pin Pmod-Compatible Connector (I²C)
• Secondary Header Allows Daisy-Chaining of Additional Modules on the I²C Bus
• Example Software Written in C for Portability
• RoHS Compliant
• Proven PCB Layout
• Fully Assembled and Tested
