PCIE SWITCH

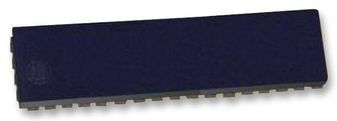

The PI3PCIE3442 is a differential exchange switch featuring pass-through pinout. It supports two full PCI Express® lanes operating at 8.0Gbps PCIe® 3.0 performance. With the select control input low, Port A connects to Port B, and Port C connects to port D for an 8-channel differential passthough. When the select control input is high Port A connects to Port D, and Port B connects to Port C. 8 Differential Channel (2-lane) Exchange PCI Express® 3.0 performance, 8.0 Gbps Bi-directional operation Low Bit-to-Bit Skew: 10ps (between ± signals) Low Crosstalk: -29dB @ 2.5GHz (5Gbps) -20dB @ 4.0GHz (8Gbps) Low Insertion Loss: -1.1dB @ 2.5GHz (5Gbps) -1.45dB @ 4.0GHz (8Gbps) VDD Operating Range: 3.3V ±10% ESD Tolerance: 2kV HBM Packaging (Pb-free & Green): 42-contact, TQFN (ZH42),
