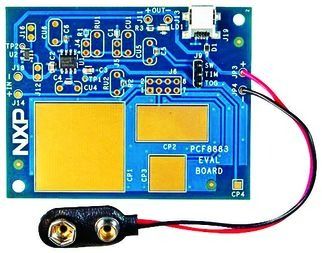

PCF8883 Capacitive Proximity Switch Evaluation Board

The OM11055 is a PCF8883 evaluation board which was developed in order to provide a tool for application engineers and development engineers wishing to try and evaluate the single channel PCF8883 capacitive proximity switch. A LED displays the status of the switch; test points facilitate measurements of important signals. The desired capacitive sensor area can vary in terms of material, form, size and switching distance. Each particular switch configuration demands a suitable electrical circuit for the input signal. This board allows to easily change the input circuit and the two capacitors which define the sensitivity and reaction speed of the sensor in a typical application. This offers the opportunity to rapidly evaluate many possible switching configurations.

Simple demonstration of the single channel PCF8883 capacitive proximity switch

Jumper to select one of the three possible switch modes of the PCF8883

Evaluate different sensor sizes (four different sensor plates included on the board) or off board user defined sensors

Two power supply options: via USB cable or a 9 V battery

Provisions for through-hole components allowing them to be easily changed
