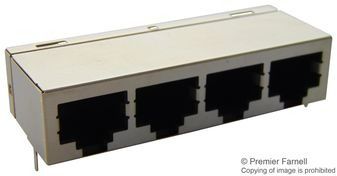

PCB MOUNTED JACKS-SGLE PORT MULTI-PORT/S
PCB MOUNTED JACKS-SGLE PORT MULTI-PORT/S
- Number of Ports : 1 x 4
- Positions : 8
- Contacts : 8
- Without LEDs
- Without Panel Stops
- Inverted : No
- PCB Ground
- Meets or exceeds FCC Part 68 rules and regulations with standard pc board footprints
- Low profile and narrow width allow more ports to be packed into less space
- Unshielded and shielded versions in popular size configurations
- Positive connection throughout life of equipment with insert molded contacts
- Accurately positioned solder tails reduce assembly labor while selectively deposited gold plating results in lower cost
- Center mounting leg available on 8 port shielded and unshielded versions
- Available with two grounding paths; pc board & panel
Характеристики
| Бренд | TE Connectivity |
|---|---|
| Описание продукта | 59.18 x 21.34 x 13.64 mm |
| Рабочая температура | -40 to 80 °C |
| Number Of | 32 POS |
| Max Proce | 240|260|265 |
| Body Orie | Right Angle |
| Terminati | Solder |
| Type Prod | RJ-45 |
| Pitch | 2.5400 mm |
| Gender | F |
| Contact Plating | Gold Over Nickel |
| Длина | 59.18 mm |
| Number Of Ports | 4 |
| Lead Finish | Tin |
| Schedule B | 8536694040 |
| HTSN | 8536694040 |
| Contact M | Phosphor Bronze |
| Base Hous | Nylon |
| Number Of | 32 |
| Family | RJ45 Modular Jacks & Plugs |
SKU: 5558503-1
