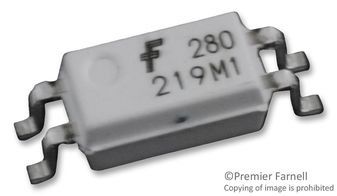

Optocoupler AC-IN 1-CH Transistor DC-OUT 4-Pin Mini-Flat Box
The HMHAA280 series consists of two gallium arsenide infrared emitting diodes, connected in inverse parallel, driving a single silicon phototransistor in a compact 4-pin mini-flat package. The lead pitch is 1.27mm.
- Compact 4-pin package - (2.4 mm maximum standoff height)
- Half pitch leads for optimum board space savings
- High current transfer ratio: 50-600%
- Available in tape and reel quantities of 2500
- CSA (File #1201524), UL (file #E90700) and VDE (file #136480) certified
Характеристики
| Бренд | ON Semiconductor |
|---|---|
| Maximum C | 600@5mA % |
| Maximum P | 150 mW |
| Number Of | 1 |
| Max Proce | 230 |
| Input Type | AC |
| Output Type | DC |
| Описание продукта | 2.69 x 4.4 x 2.19 mm |
| Supplier | Mini-Flat |
| Рабочая температура | -55 to 100 °C |
| Minimum I | 3750 Vrms |
| Channel Type | N |
| Maximum C | 80 V |
| Maximum C | 50 mA |
| Msl Level | 1 |
| Maximum C | 400 mV |
| Lead Finish | Matte Tin |
| Input Current | 50 mA |
| Schedule B | 8541408000 |
| HTSN | 8541408000 |
| Страна происхождения | Thailand |
SKU: HMHAA280
