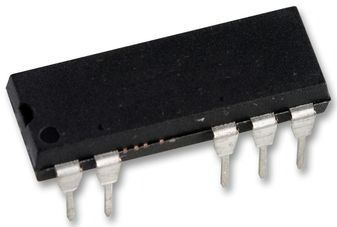

Off Line Switcher 7-Pin PDIP-C

PKS606 is designed to address applications with high peak to-continuous power ratio demands. The very high switching frequency during peak power loads and excellent load transient response reduce system cost as well as component count and size. PKS606 incorporates a 700 V power MOSFET, oscillator, high voltage switched current source for startup, current limit, and thermal shutdown onto a monolithic device. In addition, these devices incorporate auto-restart, line under-voltage sense and frequency jittering. An innovative design minimizes audio frequency components in the simple ON/OFF control scheme to practically eliminate audible noise with standard varnished transformer construction.

• EcoSmart®- Extremely Energy-Efficient
  • Standby output power =0.6 W for 1 W input (high line)
  • Sleep mode power =2.4 W at 3 W input (high line)
  • No-load consumption <200 mW at 265 VAC input
  • Surpasses California Energy Commission (CEC), ENERGY STAR, and EU requirements
• Peak Switch Features Reduce System Cost
  • Delivers peak power of up to three times maximum continuous output power
  • 277 kHz operation during peak power significantly reduces transformer size
  • Programmable smart AC line sensing provides latching shutdown during short circuit, overload and open loop faults, and prevents glitches during power down or brownout
  • Two external components reset latch on AC removal
  • Adaptive switching cycle on-time extension increases lowline peak output power, minimizing bulk capacitor size
  • Adaptive current limit reduces output overload power
  • Frequency jittering reduces EMI filter cost
  • Tight I2f tolerances and negligible temperature variation of key parameters ease design and lower cost
  • Accurate hysteretic thermal shutdown with automatic recovery provides complete system level overload protection and eliminates need for manual reset
• Better System Cost/Performance over RCC and Discrete
  • Simple ON/OFF control - no loop compensation needed
  • Very low component count - higher reliability and single side printed circuit board
  • High bandwidth provides fast turn on with no overshoot and excellent transient load response
  • Peak current limit operation rejects line frequency ripple
  • Built-in current limit and hysteretic thermal protection
• Output Peak Power (85-265 VAC) : 46/86 W
