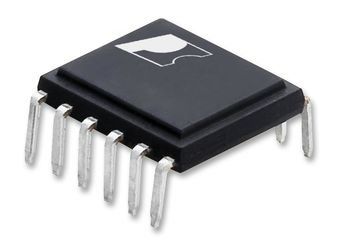

Off Line Switcher 11-Pin EDIP-B
Off Line Switcher 11-Pin EDIP-B
- EcoSmart™- Energy Efficient
- Multi-mode control maximizes efficiency over full load range
- No-load consumption below 30 mW at 230 VAC
- >75% efficiency with 1 W input at 230 VAC
- >50% efficiency with 0.1 W input at 230 VAC
- High Design Flexibility for Low System Cost
- Dramatically simplifies power supply designs
- Eliminates optocoupler and all secondary control circuitry
- ±5% or better output voltage tolerance
- 132 kHz operation reduces transformer and power supply size
- Accurate programmable current limit
- Compensation over line limits overload power
- Frequency jittering reduces EMI filter cost
- Fully integrated soft-start for minimum start-up stress
- 725 V MOSFET simplifies meeting derating requirements
- Extensive Protection Features
- Auto-restart limits power delivery to 3% during overload faults
- Output short-circuit protection (SCP)
- Output overload/over-current protection (OPP, OCP)
- Optional extended shutdown delay time
- Output overvoltage protection (OVP), auto-restart or latching
- Line brown-in/out protection (line UV)
- Line overvoltage (OV) shutdown extends line surge withstand
- Accurate thermal shutdown (OTP), hysteretic or latching
- Advanced Green Package Options
- eSIP™-7C package: Vertical orientation for minimum PCB footprint
- Simple heat sink mounting using clip or adhesive pad
- eSOP™-12B package: Low profile surface mounted for ultra-slim designs
- Heat transfer to PCB via exposed pad and SOURCE pins
- Supports either wave or IR reflow soldering
- eDIP™-12B package: Low profile through-hole mounted for ultra-slim designs
- Heat transfer to PCB via exposed pad or optional metal heat sink
- Extended creepage to DRAIN pin
- Heat sink is connected to SOURCE for low EMI
- Halogen free and RoHS compliant
Характеристики
| Бренд | Power Integrations |
|---|---|
| Schedule B | 8542390000 |
| HTSN | 8542390001 |
| Supplier | EDIP-B |
| Описание продукта | 10.16 x 8.89 x 2.34 mm |
| Рабочая температура | -40 to 150 °C |
| Lead Finish | Matte Tin |
| Max Proce | 260 |
SKU: LNK6776V
