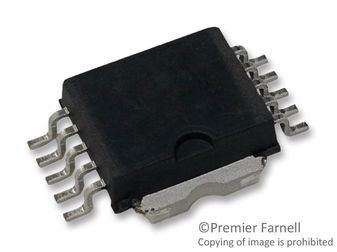

Off Line Primary Switch 10-Pin(10+2Tab) PowerSO T/R

The VIPer53E combines an enhanced current mode PWM controller with a high voltage MDMesh Power MOSFET in the same package.Typical applications cover offline power supplies with a secondary power capability ranging up to 30W in wide range input voltage, or 50W in single European voltage range and DIP-8 package and 40W in wide range input voltage, or 65W in single European voltage range and PowerSO-10 package, with the following benefits: Overload and short-circuit events controlled by feedback monitoring and delayed device reset; Efficient standby mode by enhanced pulse skipping.Integrated start-up current source is disabled during normal operation to reduce the input power.

Switching frequency up to 300kHz

Current mode control with adjustable limitation

Soft start and shut-down control

Automatic burst mode in standby condition ("Blue Angel" compliant )

Undervoltage lockout with Hysteresis

Integrated start-up current source

Over-temperature protection

Overload and short-circuit control

Overvoltage protection

In compliance with the 2002/95/EC European Directive
