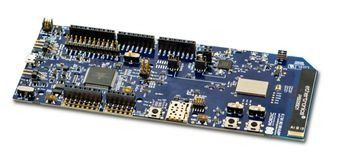

nRF9160 SiP LTE-M/NB-IoT/GPS/Bluetooth Low Energy Development Kit
The nRF9160 DK is an affordable, pre-certifed single board development kit for evaluation and development on the nRF9160 SiP for LTE-M and NB-IoT. It also includes an nRF52840 board controller that for example can be used to build a Bluetooth Low Energy gateway.
- Single board development kit for the nRF9160 SiP ?
- 700-960 MHz + 1710-2200 MHz LTE band support ?
- Same certification coverage as nRF9160 SiP ?
- nRF52840 board controller ?
- Arduino Uno Rev3 compatible ?
- LTE-M/NB-IoT, GPS and 2.4 GHz antennas ?
- SWF RF connectors for all antennas ?
- Nano/4FF SIM card slot and MFF2 SIM footprint ?
- SEGGER J-Link OB programmer/debugger ?
- Pins for measuring power consumption ?
- User-programmable LEDs(4), buttons(2) and switches(2) ?
- 3.3-5.5 V supply from USB or external
Характеристики
| Бренд | Nordic Semiconductor |
|---|---|
| Type Prod | Development Kit |
| Category | Processor Tools |
| Schedule B | 8542310000 |
| HTSN | 8542310001 |
| Страна происхождения | Norway |
| Audio I O | Нет |
| Interface | Serial I2S|SPI|UART|USB |
| Gpio | Нет |
| Ethernet | Нет |
| Configura | 1MB Flash|256KB RAM |
| Memory Ca | SIM Card |
| Wireless | Bluetooth|Zigbee|802.15.4 |
SKU: NRF9160-DK
