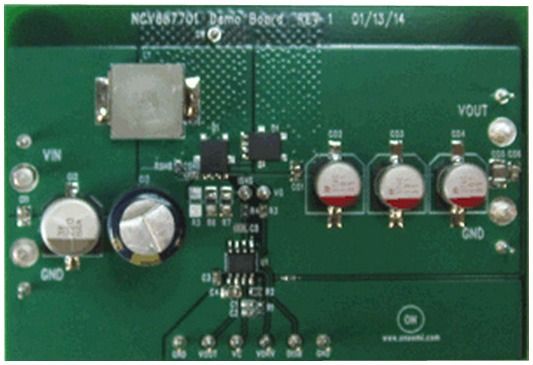

NCV887701 Non-Synchronous Boost Controller Evaluation Board

The NCV8877 is a Non-Synchronous Boost controller designed to supply a minimum output voltage during Start-Stop vehicle operationbattery voltage sags. The controller drives an external N-channelMOSFET. The device uses peak current mode control with internalslope compensation. The IC incorporates an internal regulator thatsupplies charge to the gate driver. Protection features include, cycle-by-cycle current limiting,protection and thermal shutdown. Additional features include low quiescent current sleep modeoperation. The NCV8877 is enabled when the supply voltage dropsbelow the wake up threshold. Boost Operation is initiated when thesupply voltage drops below the regulation set point.

• Automatic Enable Below Wake Up Threshold Voltage (Factory Programmable)
• Override Disable Function
• Boost Mode Operation at Regulation Set Point
• 2% Output Accuracy Over Temperature Range
• Peak Current Mode Control with Internal Slope Compensation
• Externally Adjustable Frequency Operation
• Wide Input Voltage Range of 2 V to 40 V, 45 V Load Dump
• Low Quiescent Current in Sleep Mode (<12 A Typical)
• Cycle-by-Cycle Current Limit Protection
• Hiccup-Mode Overcurrent Protection (OCP)
• Thermal Shutdown (TSD)
• This is a Pb-Free Device
