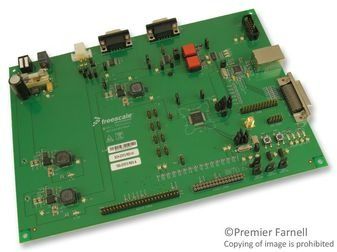

MPC5604E 32-Bit Microcontroller Evaluation Board

The NXP MPC5604E Evaluation Board for automotive safety and chassis control applications contains P&E debugger and all power supply cables.

• A 12VDC power supply input barrel connector
• Standard 14-pin ONCE JTAG debug connector
• Video Encoder Wrapper connected to Omnivision connector supporting Omnivision camera evaluation boards
• Serial Audio Interface connected to the Audio connector supporting NXP® Sahara SGTL5000 daughter card
• Onboard ethernet physical interface + MII lite connector
• FlexCAN channel routed to the prototyping area with DB9 connectors to allow additions CAN physical interface to be easily integrated
• LINFLEX Molex Connector and 0.1" 4pin header are available
