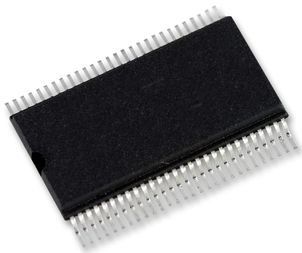

Motor Driver 56-Pin HTSSOP EP T/R

The DRV8302 is a gate driver IC for three phase motor drive applications. It provides three half bridge drivers, each capable of driving two N-type MOSFETs, one for the high-side and one for the low side.It supports up to 2.3A sink and 1.7A source peak current capability and only needs a single power supply with a wide range from 8 to 60V. The DRV8302 uses bootstrap gate drivers with trickle charge circuitry to support 100% duty cycle. The gate driver uses automatic hand shaking when high side FET or low side FET is switching to prevent current shoot through. Vds of FETs is sensed to protect external power stage during overcurrent conditions. The DRV8302 includes two current shunt amplifiers for accurate current measurement. The current amplifiers support bi-directional current sensing and provide an adjustable output offset of up to 3V. The DRV8302 also has an integrated switching mode buck converter with adjustable output and switching frequency to support MCU or additional system power needs. The buck is capable to drive up to 1.5A load.

Operating Supply Voltage 8V–60V

2.3A Sink and 1.7A Source Gate Drive Current Capability

Integrated Dual Shunt Current Amplifiers With Adjustable Gain and Offset

Integrated Buck Converter to Support up to 1.5A External Load

Independent Control of 3 or 6 PWM Inputs

Bootstrap Gate Driver With 100% Duty Cycle Support

Programmable Dead Time to Protect External FETs from Shoot Through

Programmable Overcurrent Protection of External MOSFETs

Thermally Enhanced 56-Pin TSSOP Pad Down DCA Package
