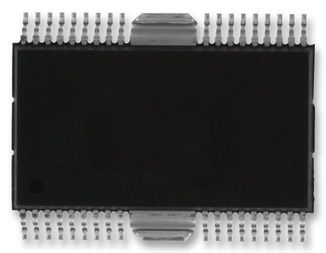

Motor Driver 38-Pin(36+2Tab) HSOP-M T/R
Motor Driver 38-Pin(36+2Tab) HSOP-M T/R
- 2CHs for current driving-type BTL drivers to drive two-axis actuators
- 1CH for a voltage driving-type BTL driver for a feed motor
- 1CH for a voltage driving-type BTL driver for a loading motor
- 1CH for a voltage driving-type BTL driver for a spindle motor
- Use of the HSOP-M36 power package achieves downsizing of the set.
- A wide dynamic range A built-in thermal shutdown circuit installed.
- A built-in mute circuit installed. (This circuit can mute the outputs of the drivers except for those for loading motors.)
- The power supplies for PreVcc. the actuator part, the loading part, and PowVcc of the feed motor part/spindle motor part are provided independently to achieve an efficient drive.
Характеристики
| Бренд | ROHM |
|---|---|
| Schedule B | 8542310000 |
| HTSN | 8542310001 |
| Category | Motor Driver |
| Type Prod | Motor Driver |
| Описание продукта | 18.5 x 7.5 x 2.2 mm |
| Рабочая температура | -35 to 85 °C |
| Lead Finish | Tin|Tin/Copper |
| Supplier | HSOP-M |
| Max Proce | 260 |
SKU: BA5956FM-E2
