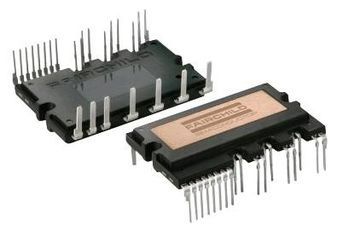

Motor Driver 27-Pin SPM27-HA Rail

The FPDB50PH60 is a PFC SPM 3 module providing a fully-featured, high-performance Bridgeless PFC (Power Factor Correction) input power stage for consumer, medical, and industrial applications. These modules integrate optimized gate drive of the built-in IGBTs to minimize EMI and losses, while also providing multiple on-module protection features including under-voltage lockout, over-current shutdown, thermal monitoring, and fault reporting. These modules also feature high-performance output diodes and shunt resistor for additional space savings and mounting convenience.

• UL Certified No. E209204 (UL1557)
• 600 V - 50 A 2-Phase Bridgeless PFC with Integral Gate Driver and Protection
• Very Low Thermal Resistance Using AlN DBC Substrate
• Built-in NTC Thermistor for Temperature Monitoring
• Built-in Shunt Resistor for Current Sensing
• Optimized for 20kHz Switching Frequency
• Isolation Rating
  • 2500 Vrms/min
• 2-Phase Bridgeless PFC Converter
