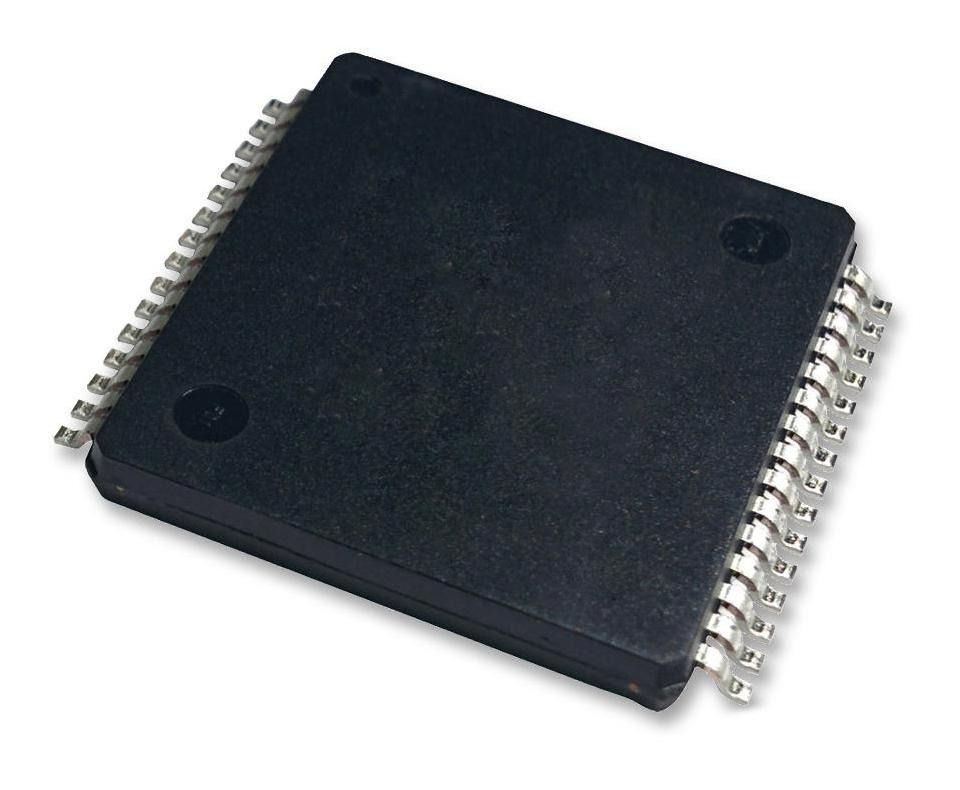

MOSFET DRVR 2-OUT Hi Side 30-Pin PowerSO T/R
The VND5E004A-E and VND5E004ASP30-E are double channel high-side drivers manufactured using ST proprietary VIPower M0-5 technology and housed in PQFN-12x12 power lead-less and MultiPowerSO-30 packages. The devices are designed to drive 12 V automotive grounded loads, and to provide protection and diagnostics. They also implement a 3 V and 5 V CMOS-compatible interface for use with any microcontroller.The devices integrate advanced protective functions such as load current limitation, inrush and overload active management by power limitation, overtemperature shut-off with auto-restart and overvoltage active clamp. A dedicated analog current sense pin is associated with every output channel providing enhanced diagnostic functions including fast detection of overload and short-circuit to ground through power limitation indication, overtemperature indication, short-circuit to VCCdiagnosis and on-state and off-state open-load detection. The current sensing and diagnostic feedback of the whole device can be disabled by pulling the DE pin low to share the external sense resistor with similar devices.
General Very low standby current 3.0 V CMOS compatible inputs Optimized electromagnetic emissions Very low electromagnetic susceptibility Compliant with European directive 2002/95/EC Very low current sense leakage Diagnostic functions Proportional load current sense High current sense precision for wide currents range Diagnostic enable pin Off-state open-load detection Output short to VCCdetection Overload and short to ground (power limitation) indication Thermal shutdown indication Protection Undervoltage shutdown Overvoltage clamp Load current limitation Self limiting of fast thermal transients Protection against loss of ground and loss of VCC Overtemperature shutdown with auto restart (thermal shutdown) Inrush current active management by power limitation Reverse battery protection with self switch on of the Power MOSFET Electrostatic discharge protection
Характеристики
| Бренд | STMicroelectronics |
|---|---|
| Описание продукта | 17.2 x 16 x 2.25 mm |
| Max Proce | 250 |
| Supplier | PowerSO |
| Рабочая температура | -40 to 150 °C |
| Msl Level | 3 |
| Lead Finish | Matte Tin |
| Schedule B | 8542390000 |
| HTSN | 8542390001 |
| Страна происхождения | Malaysia |
| Number Of | 2 |
| Number Of | 2 |
| Driver Type | High Side |
| Maximum T | 25000 ns |
| Maximum T | 35000 ns |
| Typical O | 13 V |
| Input Log | 3V|5V|CMOS |
SKU: VND5E004A30TR-E
