Module DC-DC 1-OUT 9V 0.333A 3W 8-Pin DIP

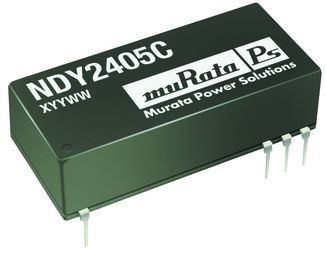

The NDY series is a range of low profile DC/DC converters offering a single regulated output over a 2:1 input voltage range. All parts deliver 3W output power up to 85ºC without heatsinking, except the 4.5V to 9V input voltage range which should be derated to 2W at the lower input voltage. A flyback oscillator design with isolated feedback is used to give regulation over the full operating range of 25% to 100% of full load. It is strongly recommended that external capacitors be used on input and output to guarantee performance over full load and input voltage range.

• UL 60950 recognized
• RoHS compliant
• Industry standard footprint
• Efficiency to 82%
• Power density 0.90W/cm3
• 2:1 wide input range
• Single isolated output
• Short circuit protection
• Low profile 24 pin case
• UL 94V-0 package material
• Operating temperature range -40ºC to 85ºC
• No heatsink required
• Footprint 4.73cm2
• Internal SMD construction
• Fully encapsulated
• 12V nominal input voltage
• 9V output voltage
