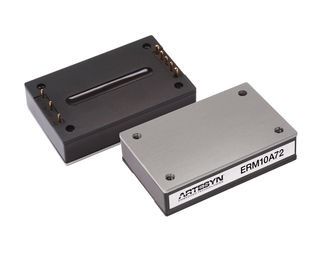

Module DC-DC 1-OUT 5V 10A 50W 8-Pin
Module DC-DC 1-OUT 5V 10A 50W 8-Pin
- Small 57.9 x 36.8 x12.7 mm package
- Input Ranges 43 - 101 Vdc or 66 - 160 Vdc
- High Efficiency up to 92%
- No Minimum Load Requirement
- Operating Temp. Range -40 °C to +85 °C
- Reinforced Insulation 3000 VACrms
- Under-Voltage Shutdown
- Remote On/Off
- Metal Case with Isolated Baseplate
- Vibration and Thermal Shock to EN61373
- Safety meets EN60950-1 and Railway Standard EN50155 (IEC60571) and EN50121-3-2
- EN45545-2 flammability
Характеристики
| Бренд | Artesyn Embedded Technologies |
|---|---|
| Input Voltage | 66 to 160 V |
| Output Voltage | 5 V |
| Описание продукта | 57.9 x 36.8 x 12.7 |
| Output Current | 10 A |
| Switching | Да |
| Number Of | 1 |
| Output Power | 50 W |
| Type Prod | Step Down |
| Рабочая температура | -40 to 85 °C |
| Schedule B | 8504409510 |
| HTSN | 8504409510 |
| Страна происхождения | Hong Kong S.A.R. of China |
| Max Proce | 260 |
SKU: ERM10A110
