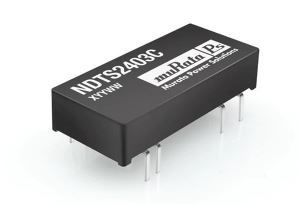

Module DC-DC 1-OUT 12V 0.25A 3W 8-Pin DIP

The NDTS series is a range of low profile DC/DC converters offering a single regulated output over a 2:1 input voltage range. All parts deliver 3W output power up to 85°C without heatsinking. A flyback oscillator design with isolated feedback is used to give regulation over the full operating range of 25% to 100% of full load. It is strongly recommended that external capacitors be used on input and output to guarantee performance over full load and input voltage range (see recommended filter circuit for values).

• RoHS compliant
• Industry standard footprint
• Single isolated output
• Short circuit protection
• Operating temperature range –40°C to +85°C
• Low profile 24 pin case
• 2:1 Wide input range
• Footprint 4.73cm2
• UL94V-0 Package materials
• No heatsink required
• Internal SMD construction
• Fully encapsulated
• 5V nominal input voltage
• 12V output voltage
